4 Sierra Tango Building and flying Van's RV-7 N834ST
Electrical

May 26, 2006

8 hours logged

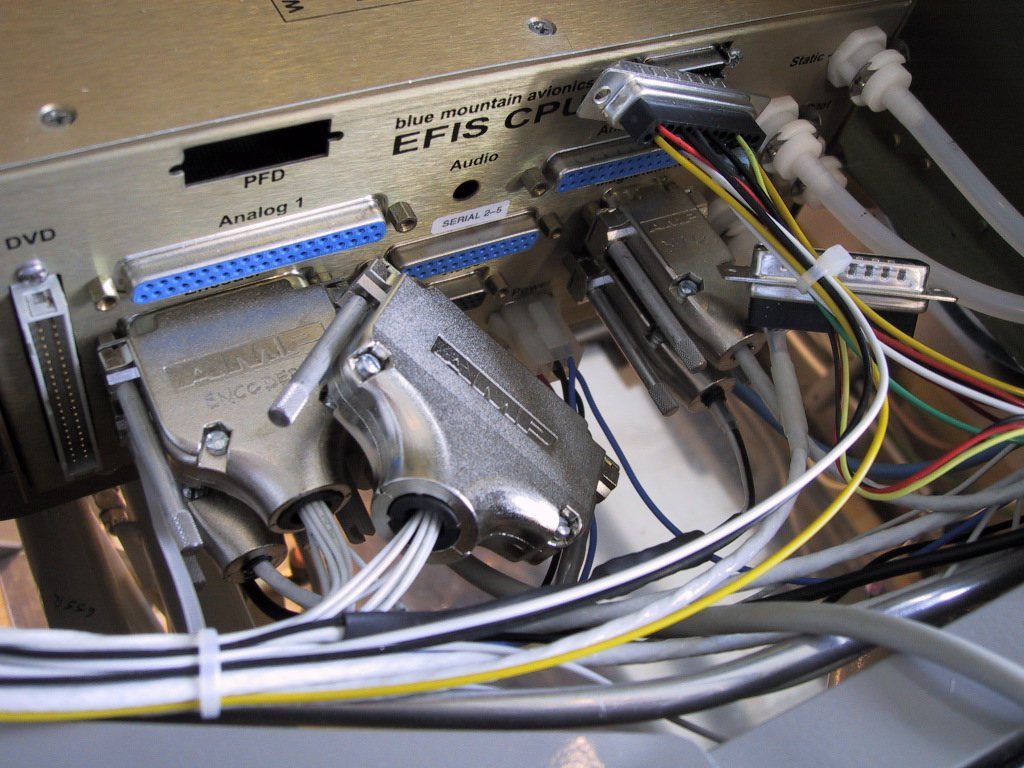

I recieved a big order from Allied Electronics yesterday, so I could get some more stuff done! I started out putting all the D-Sub hoods on the EFIS connections.

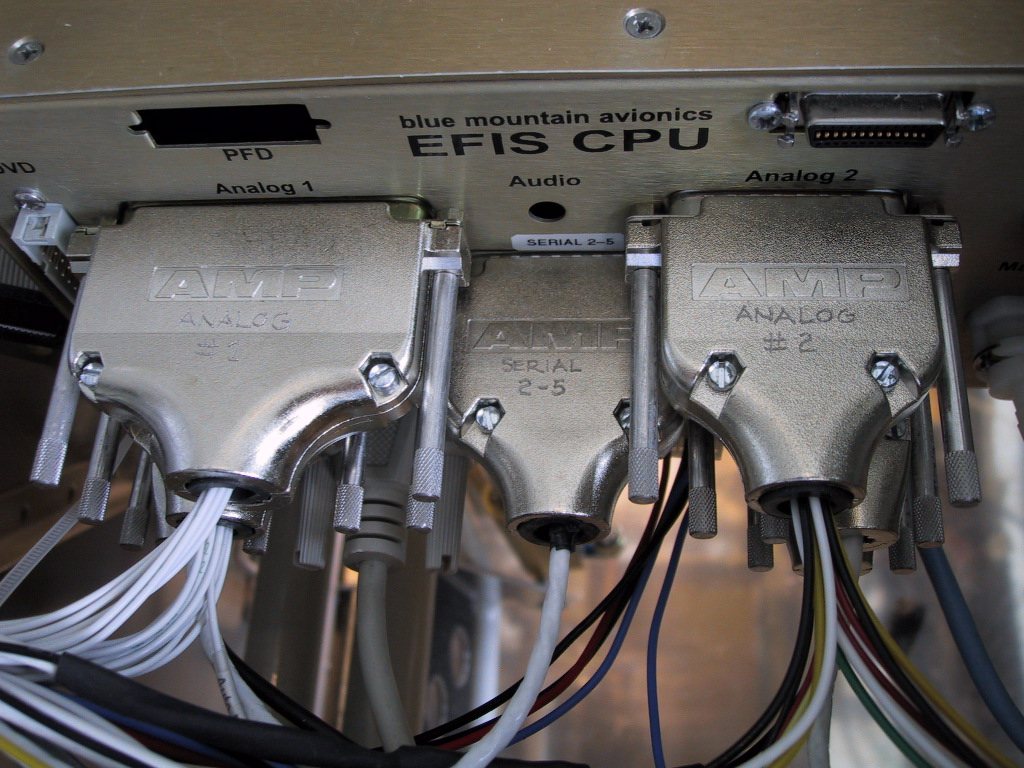

I engraved the connection names on the top and bottom of the shells too.

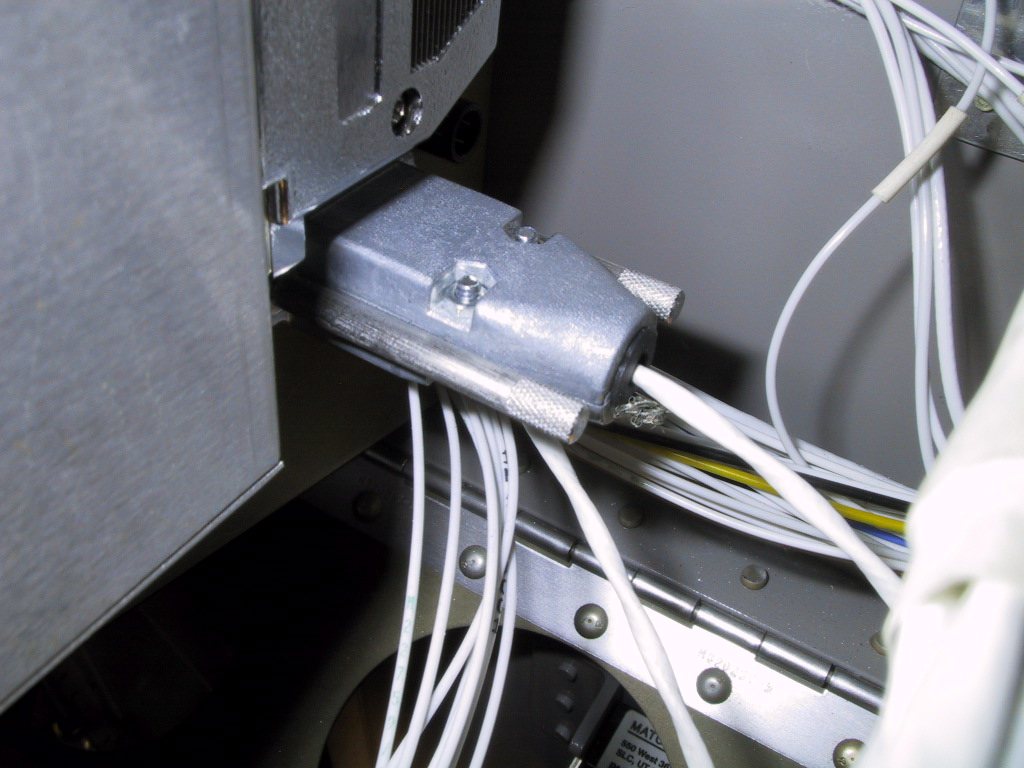

I secured the D-Sub connector for the serial earth wire for the FADEC to EFIS interface.

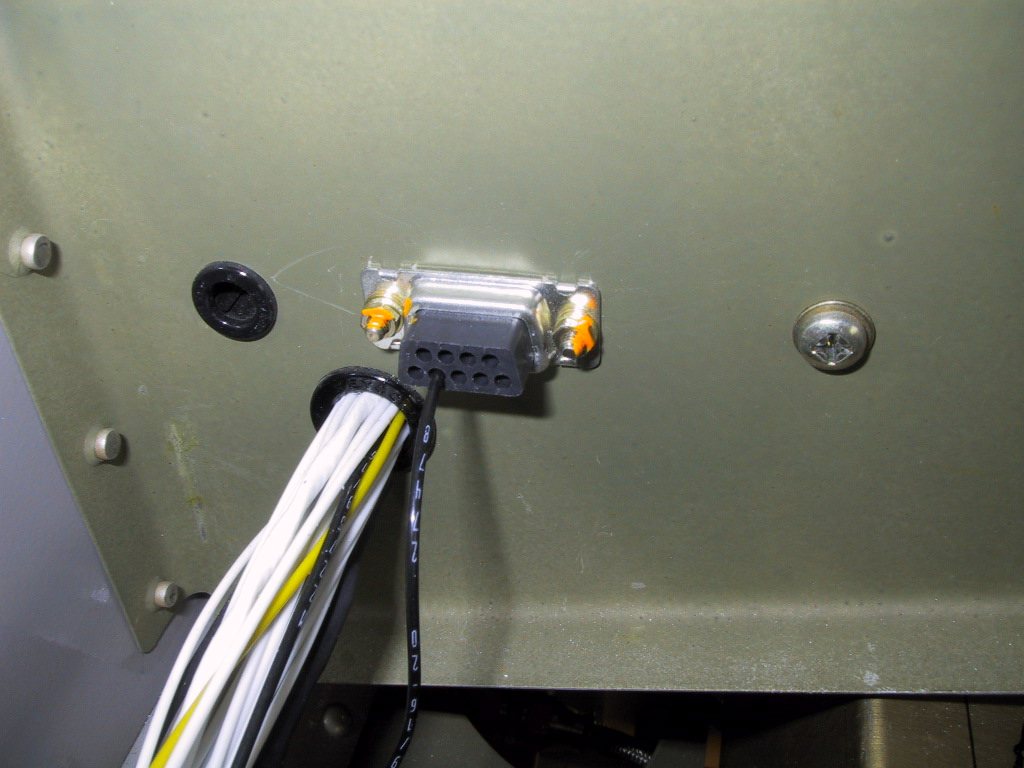

Here’s the other side. It’s possible to disconnect this so I can use the health status software and hook up to a PC.

I also finished wiring the oil temp probe and the EFIS ammeter. That about wraps up most of the electrical odds and ends. Tomorrow I’ll finish up the second battery.
