May 20, 2006

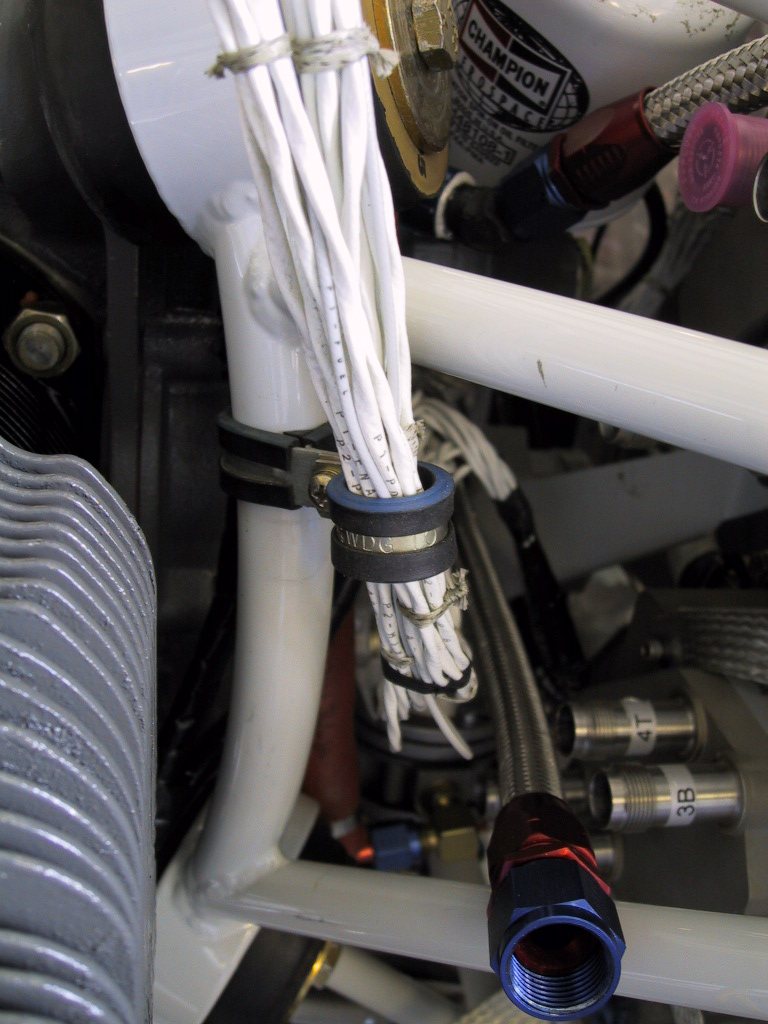

I also did a bit of firewall forward wiring today, and secured the secondary alternator harness. Here it is all wrapped up and adel clamped.

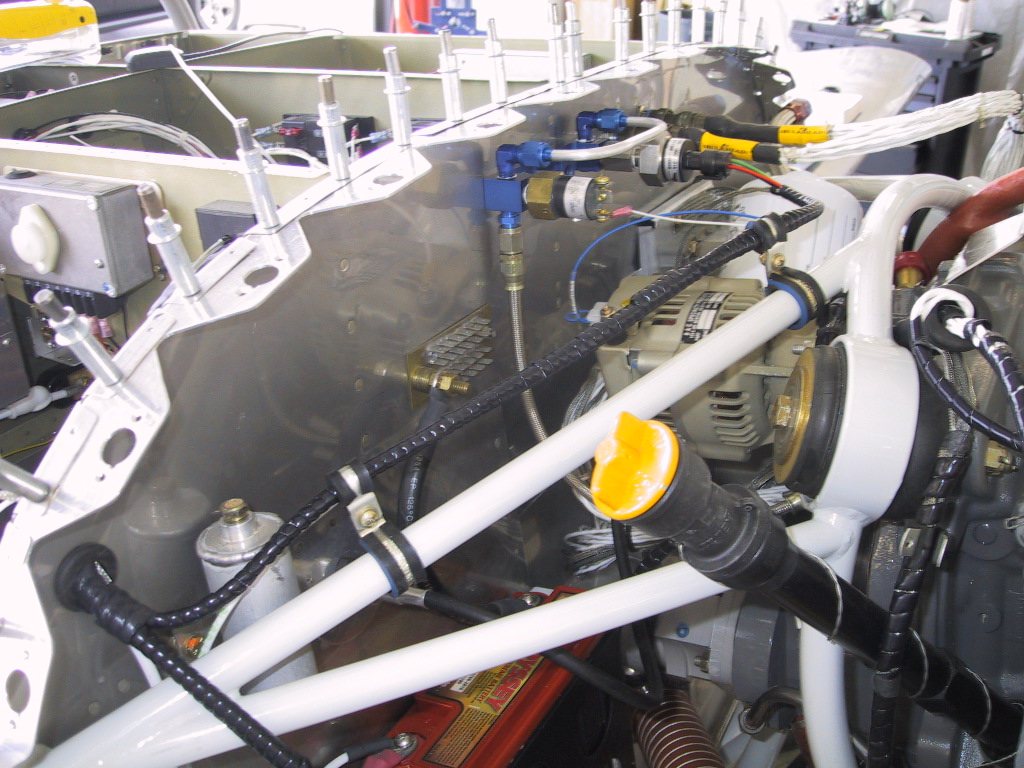

Here, I’ve secured the FADEC harness that runs to the two firewall pass through connectors. These interface the firewall forward side of the FADEC to the stuff in the cabin.

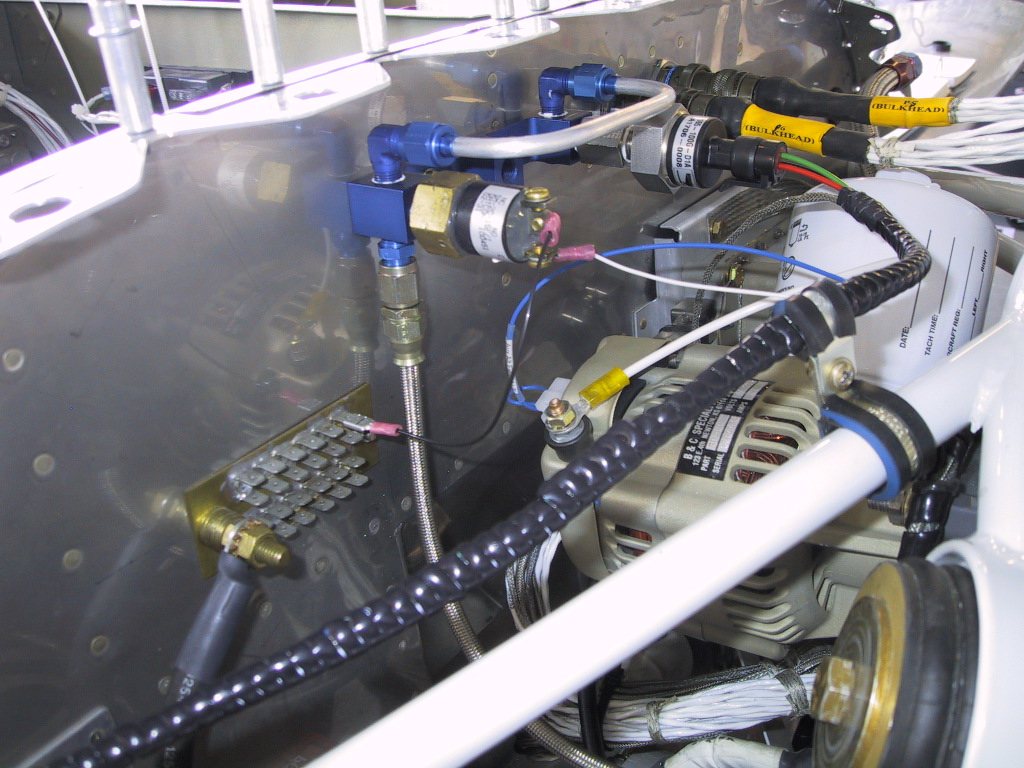

I wired the hobbs oil pressure switch, and the oil pressure sender. I also ran the oil temp sender wire, even though I can’t mount it to the engine yet because I’m waiting for the adaptor to get here!
