August 17, 2004

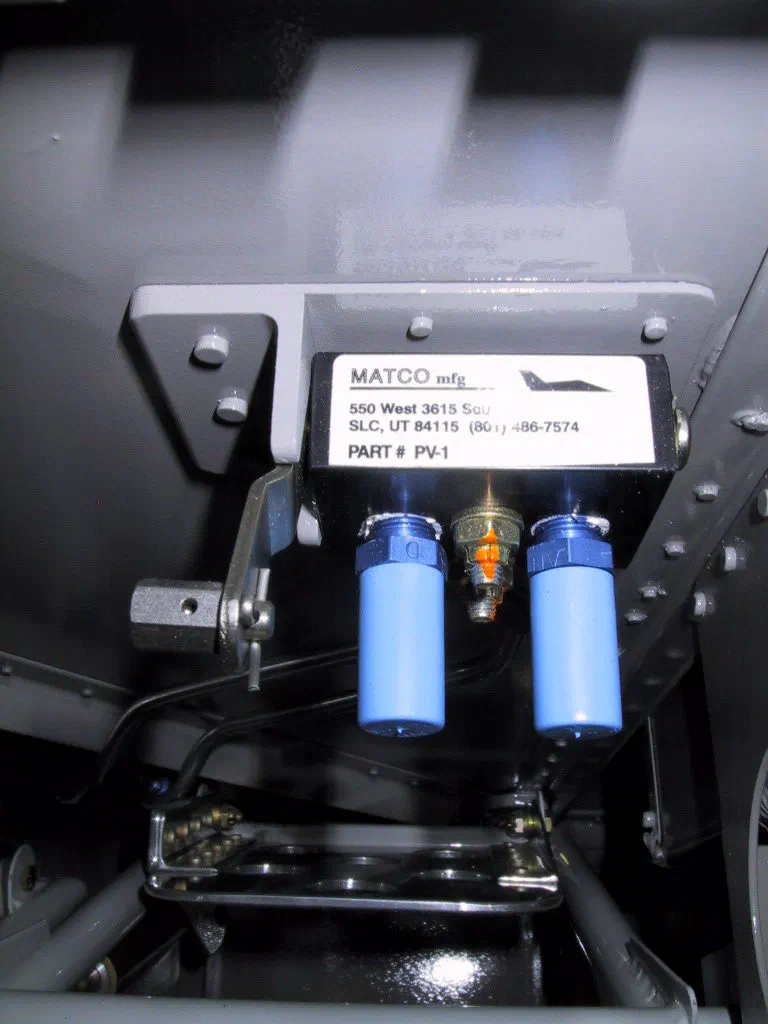

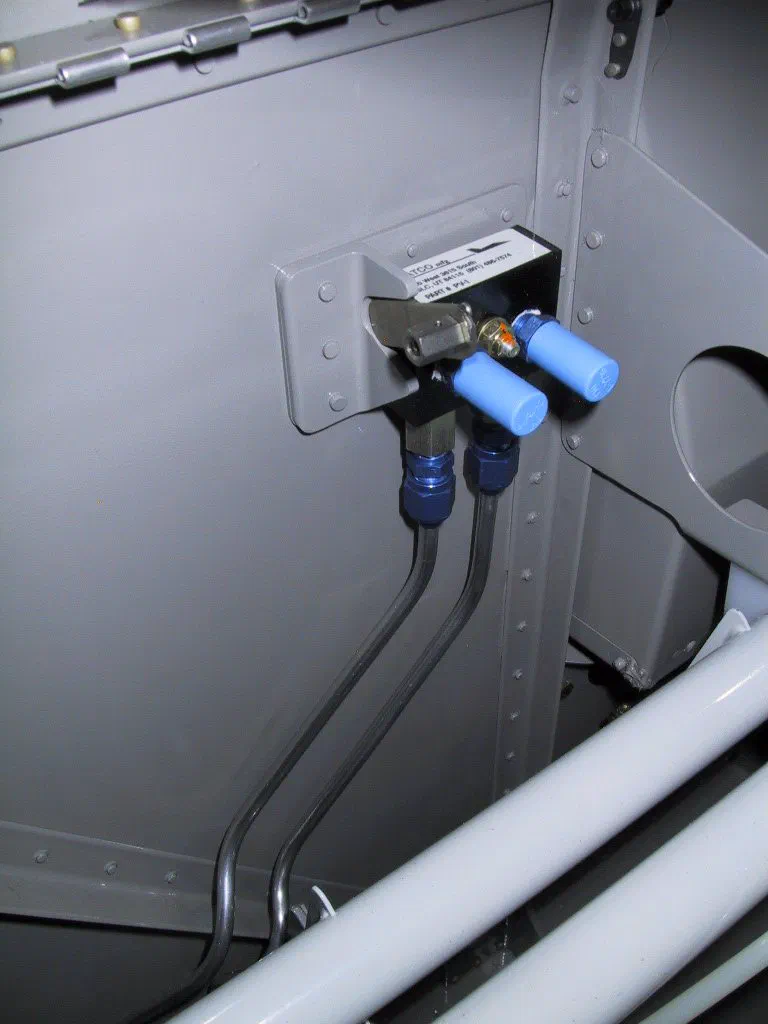

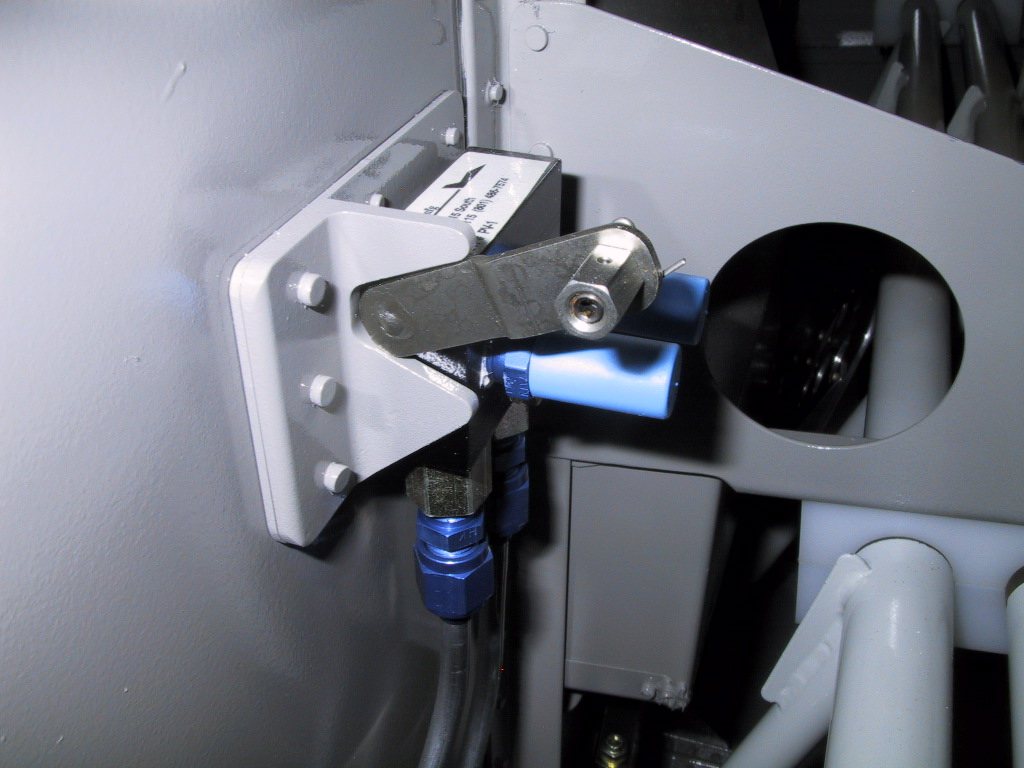

By popular demand from the RV-List, I took some better photos of the Matco parking brake valve, and the external stop I made as part of the doubler to the firewall. The angle stock is 1"x1", on an 0.63 doubler. It’s all held to the firewall with 6 rivets, and the two bolts that go through to hold the valve. The valve required spacing away from the doubler due to the arm going beyond the valve mounting face.
