4 Sierra Tango Building and flying Van's RV-7 N834ST
Fuselage

January 22, 2006

4 hours logged

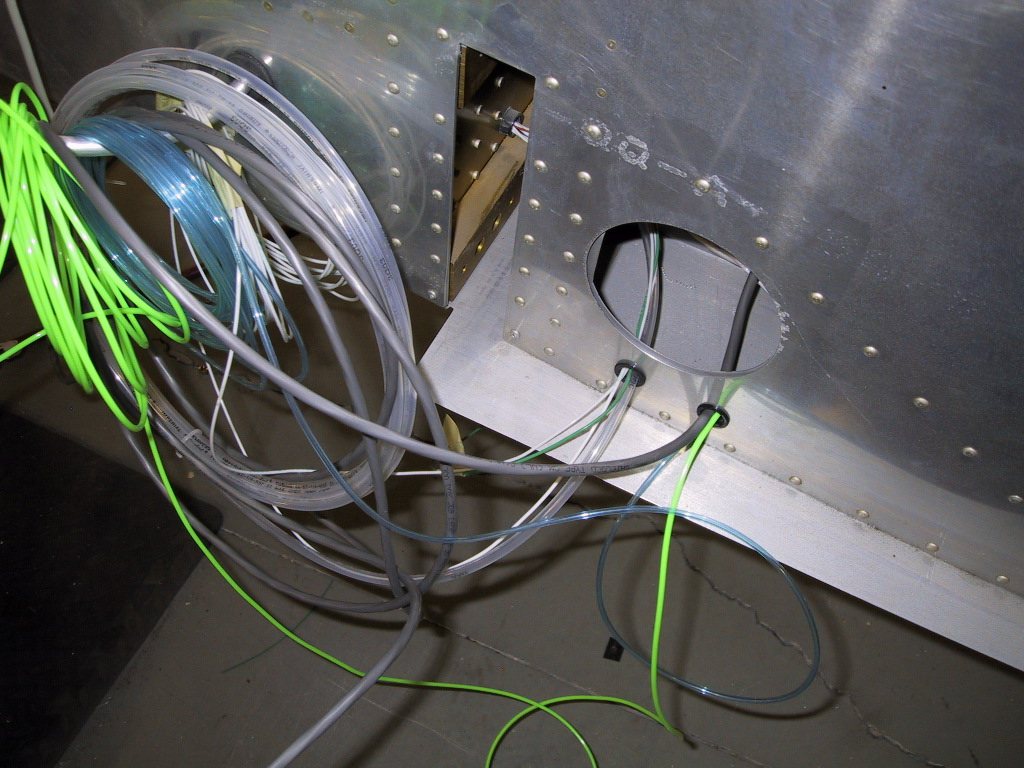

Time to make sure everything on the fuselage is ready for the wings. Something that needed to be done was the AOA Pro tubing. I made another hole in the side of the fuselage for the tubing and the strobe wiring. I also need to run a com antenna through here for Com 2.

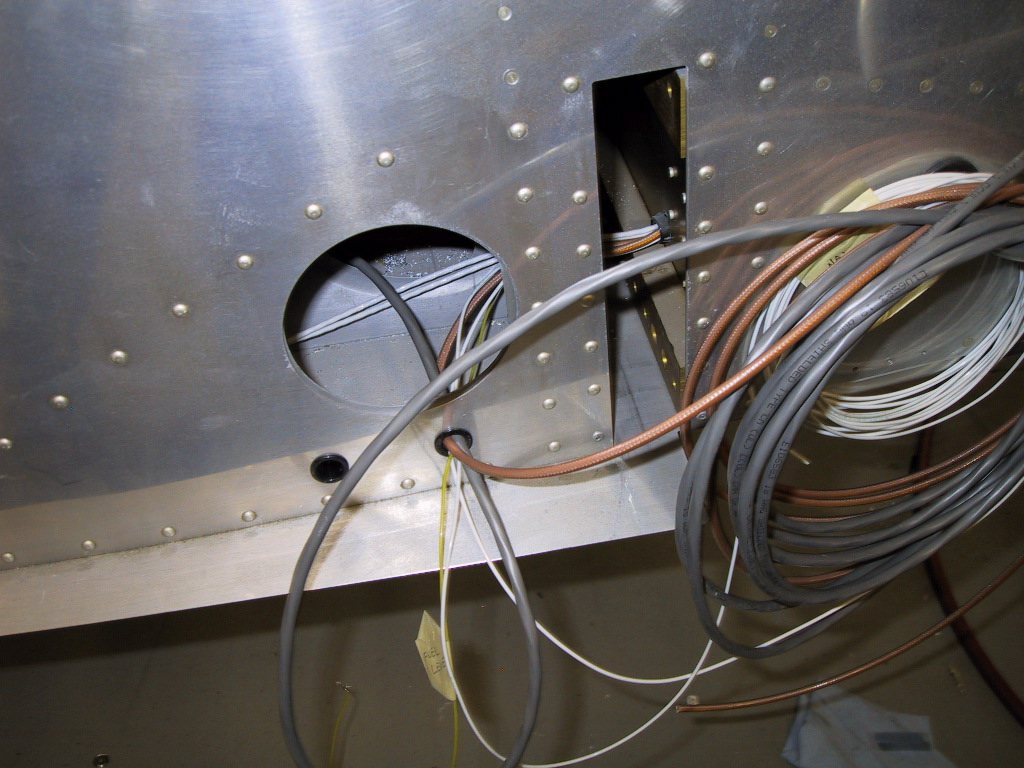

On this side, I put in the extra hole for the autopilot wiring and also another coax for marker beacon antenna.

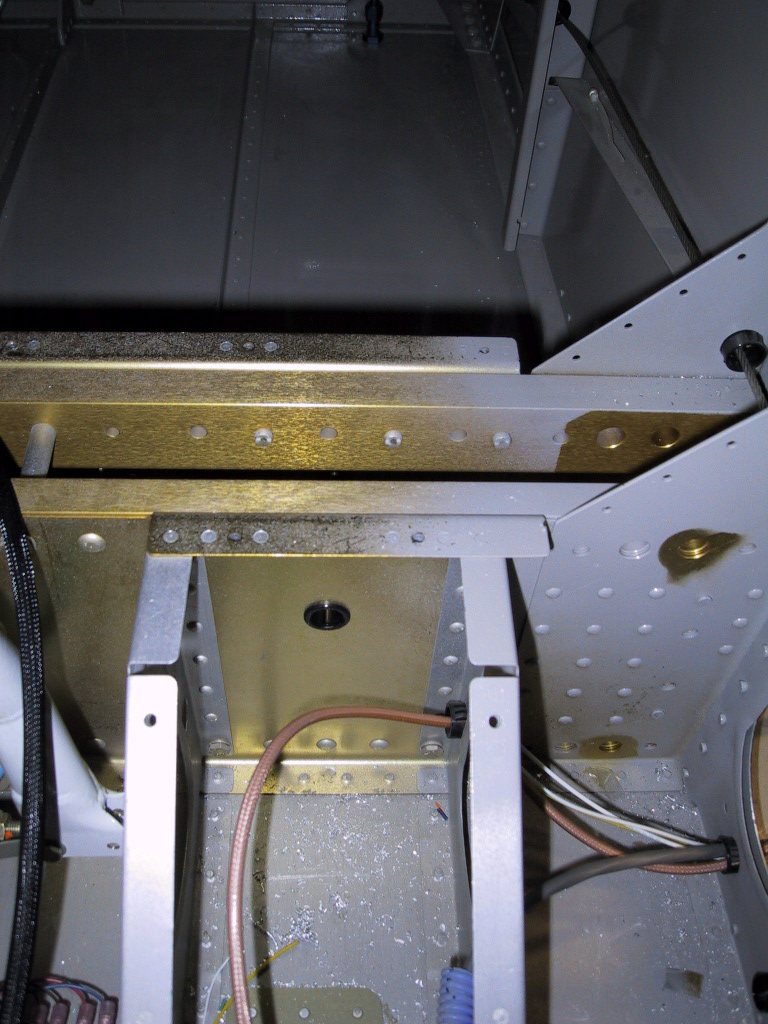

Here’s where the autopilot wiring and marker beacon antenna will pass through the spar.

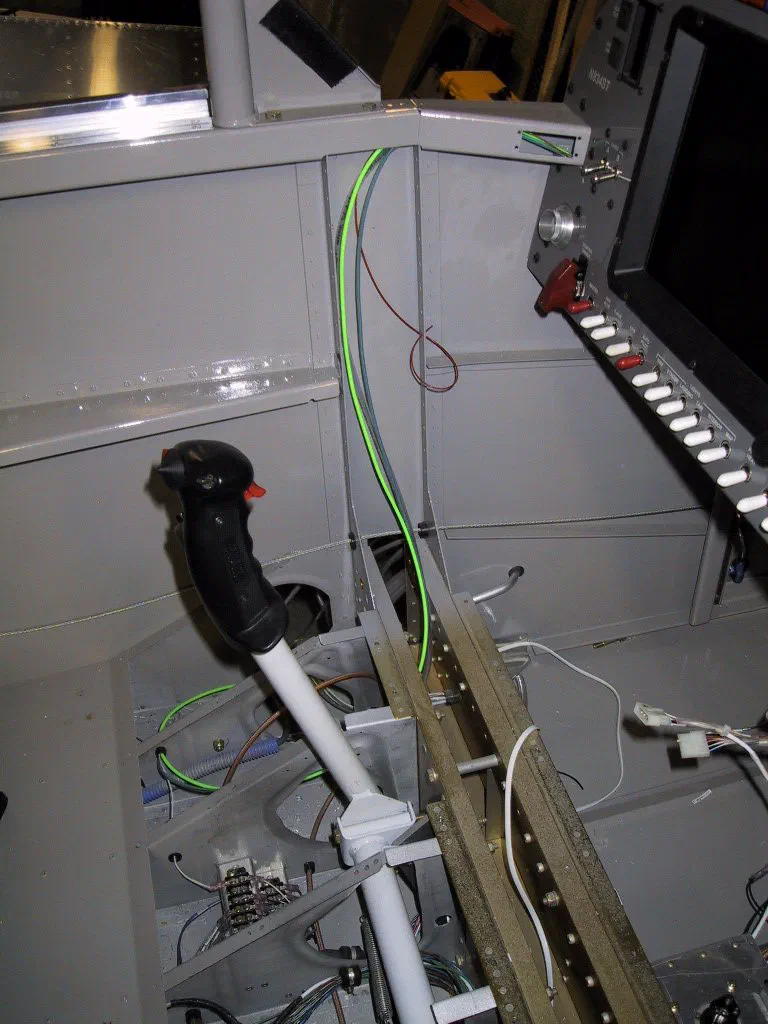

The AOA tubing follows the pitot line up the side of the fuselage and behind the panel. The hole there is for the ELT remote.

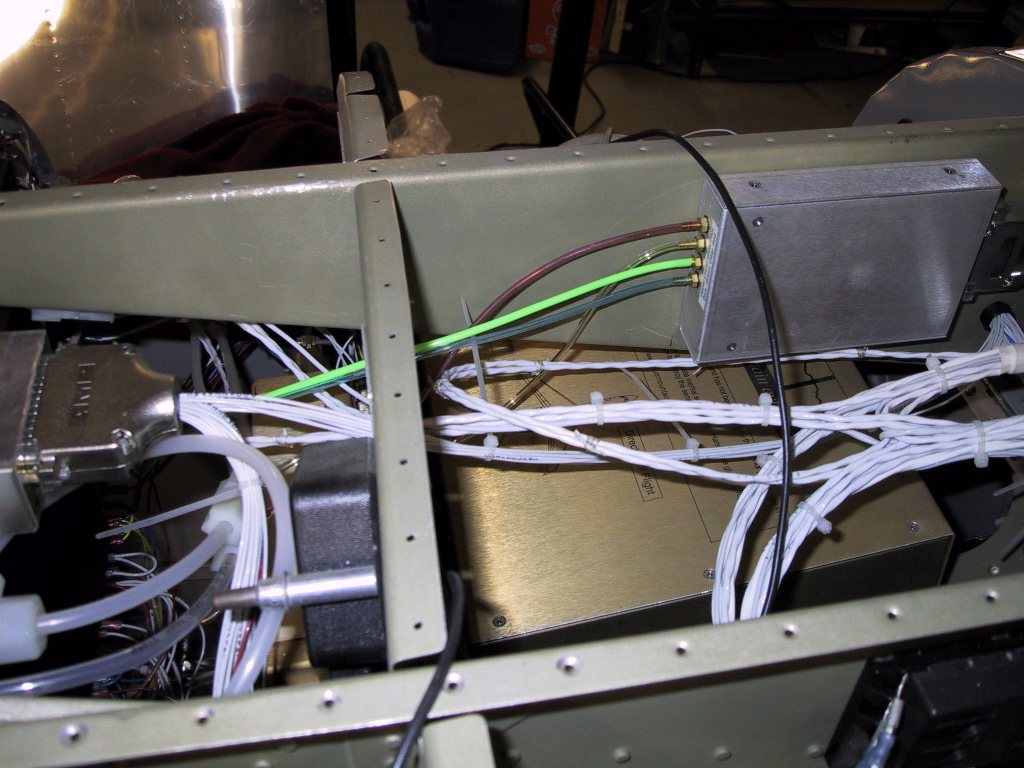

Here’s the tubing terminating at the AOA CPU. Blue is the upper port on the wing and green is the lower port on the wing.
