August 8, 2004

I managed to sneak some time in today too! Quite a lot of time. So, today, I continued with the glove box, and then I reassembled the whole panel to see what it was looking like. Pretty.

Then, I took on the challenge of wiring the radio stack…. See the Electrical page for that one…

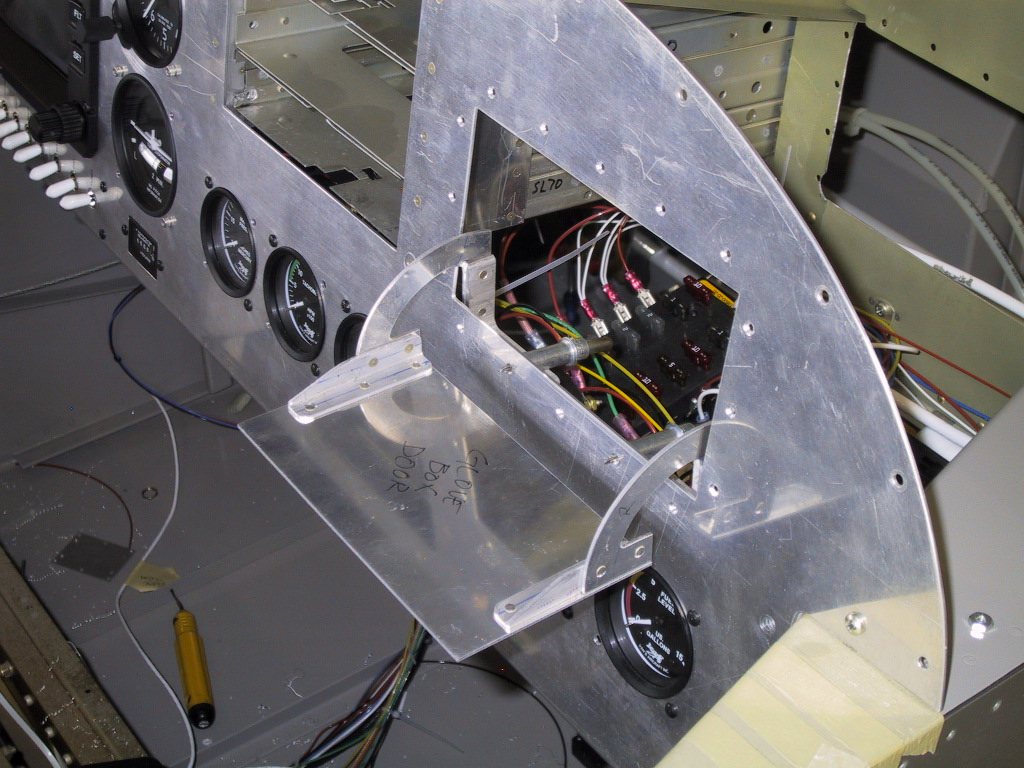

Here’s the almost complete glovebox door. I need to shape the hinge arcs to match the angle stock.

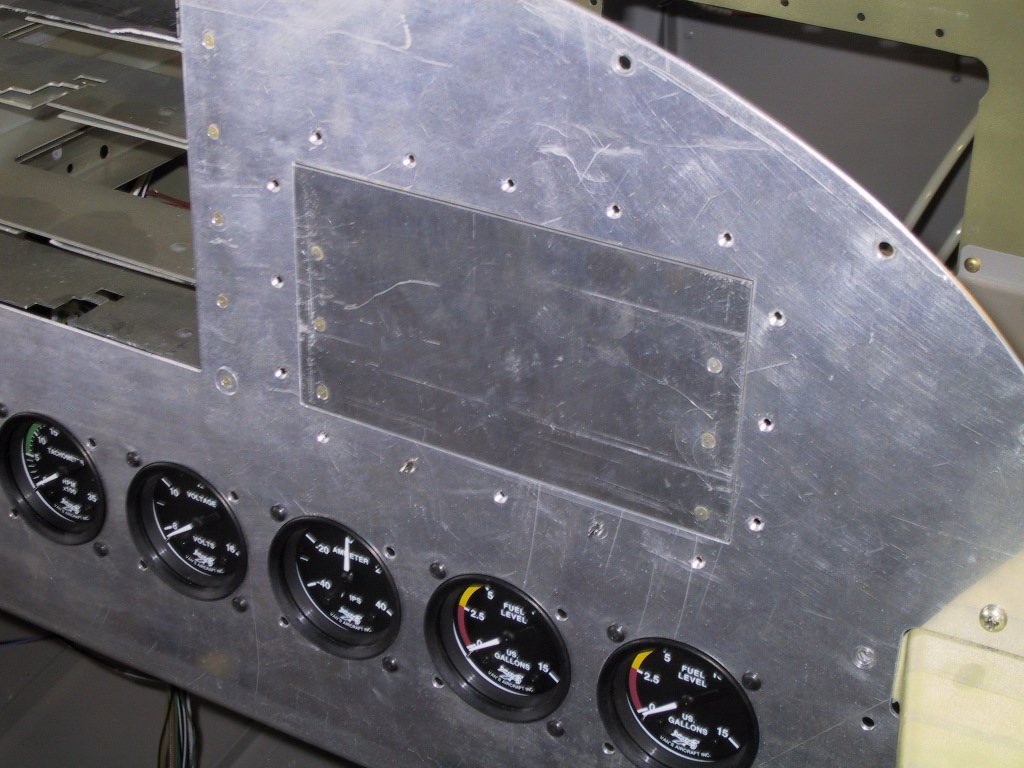

Here it is closed. It’s a nice fit. I will probably open up the gaps a little to allow for the tiny bit of slop in the hinge.

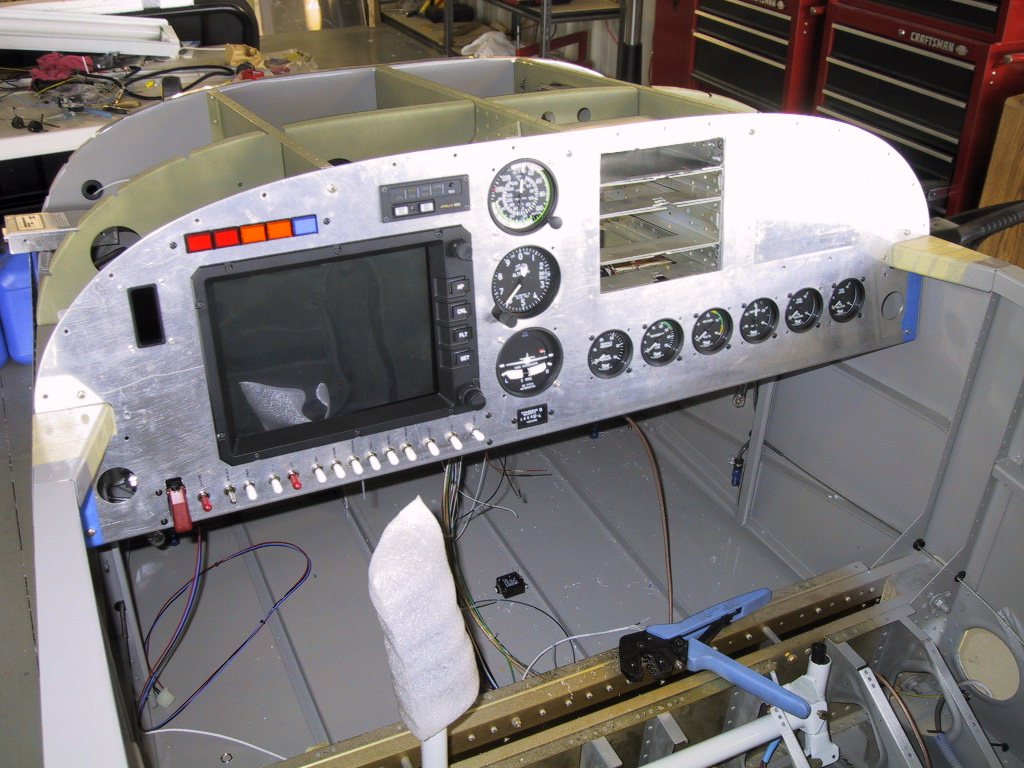

So, here’s the almost completed panel. There’s only one thing left to cut a hole for. FADEC. The display for this will be to the left of the EFIS 1 and below the AOA indicator.
