July 11, 2017

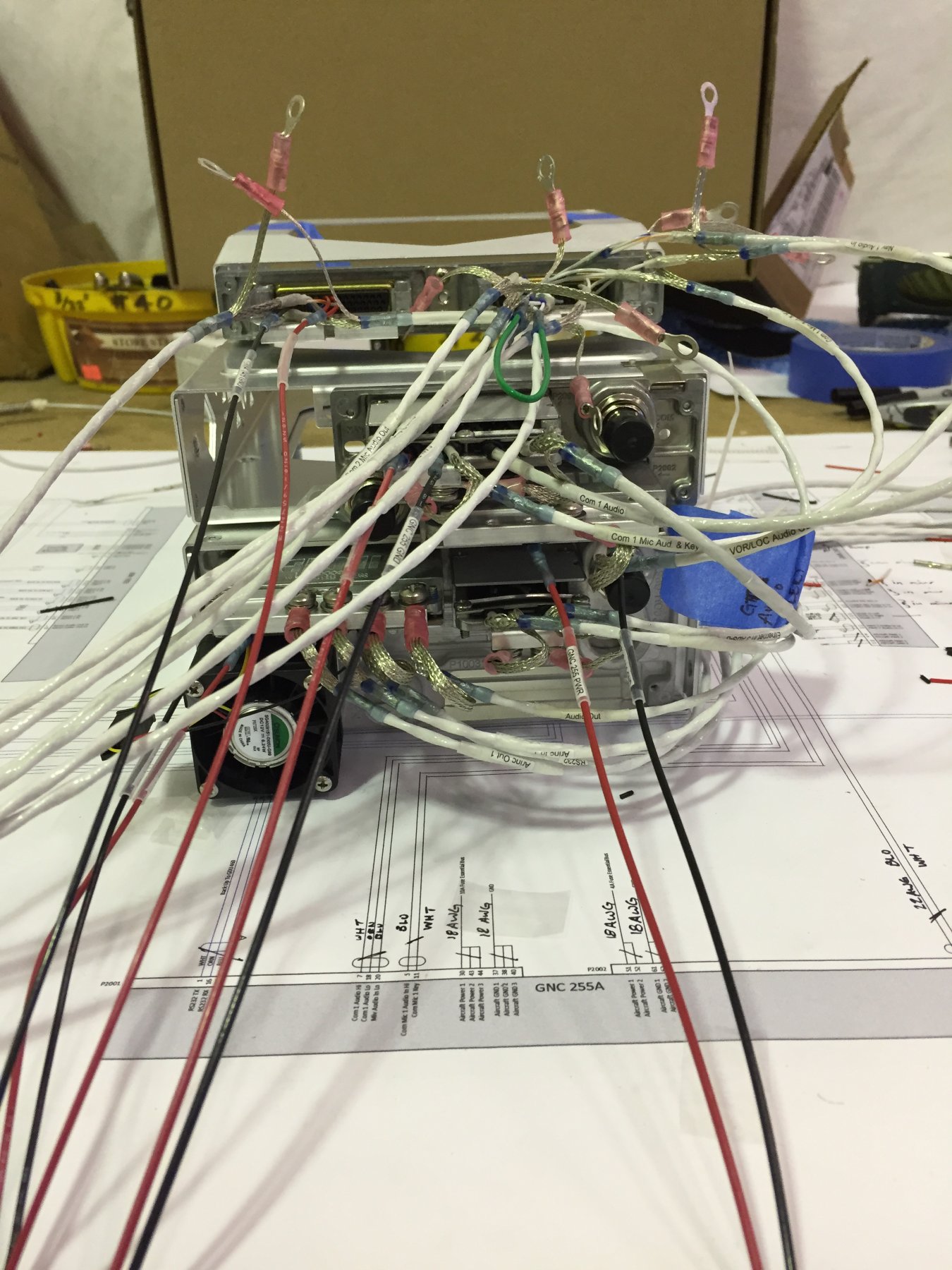

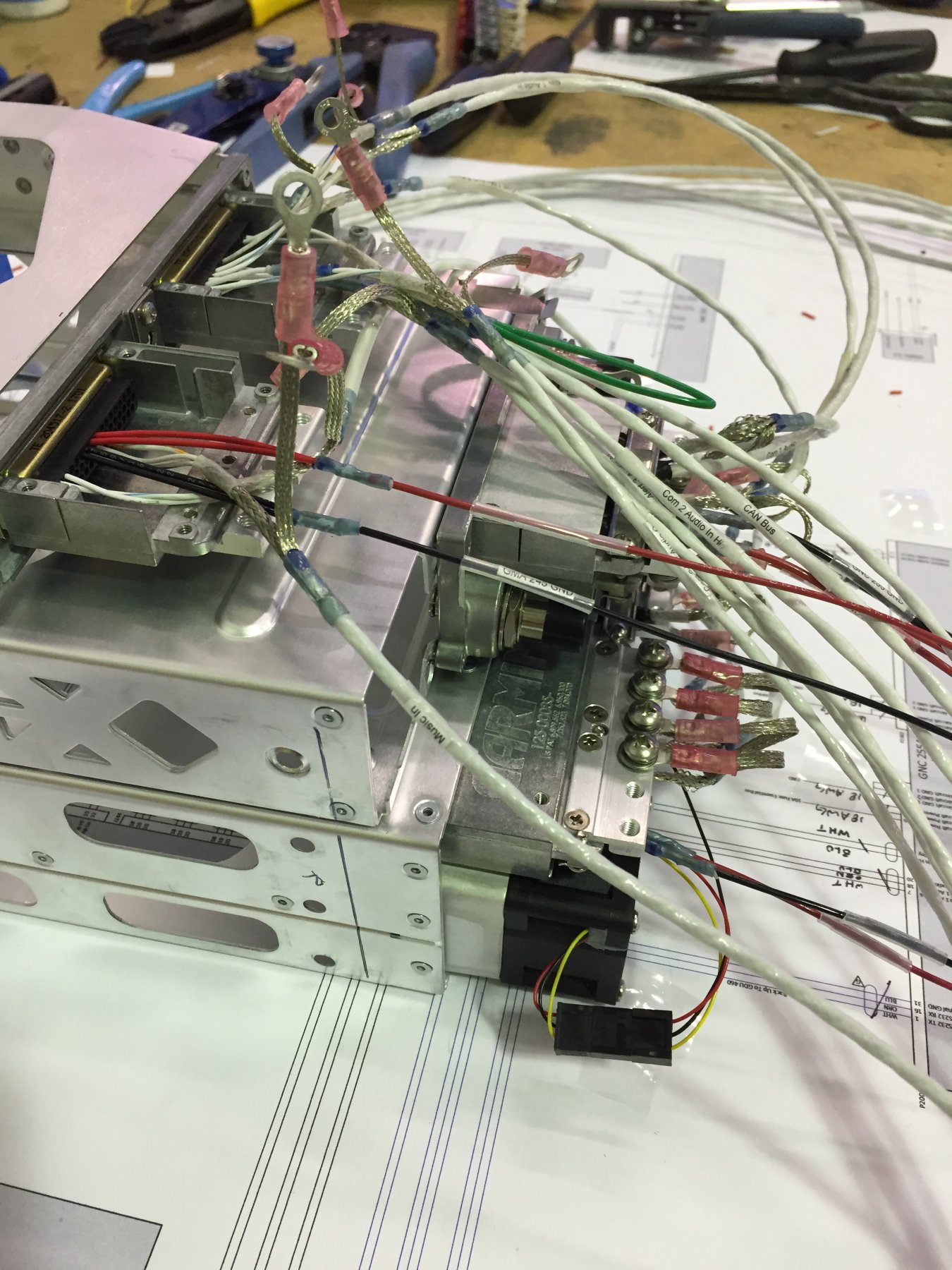

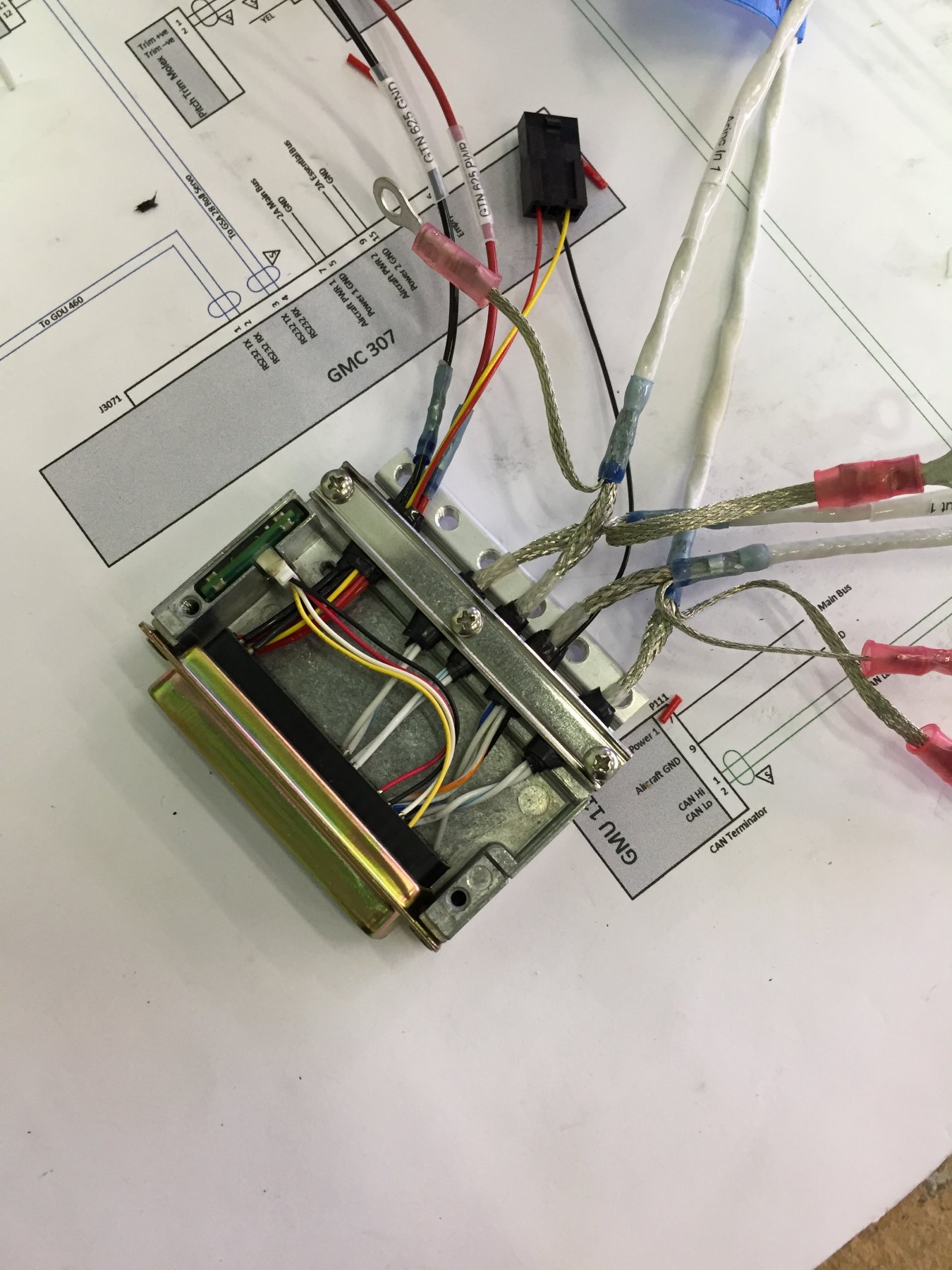

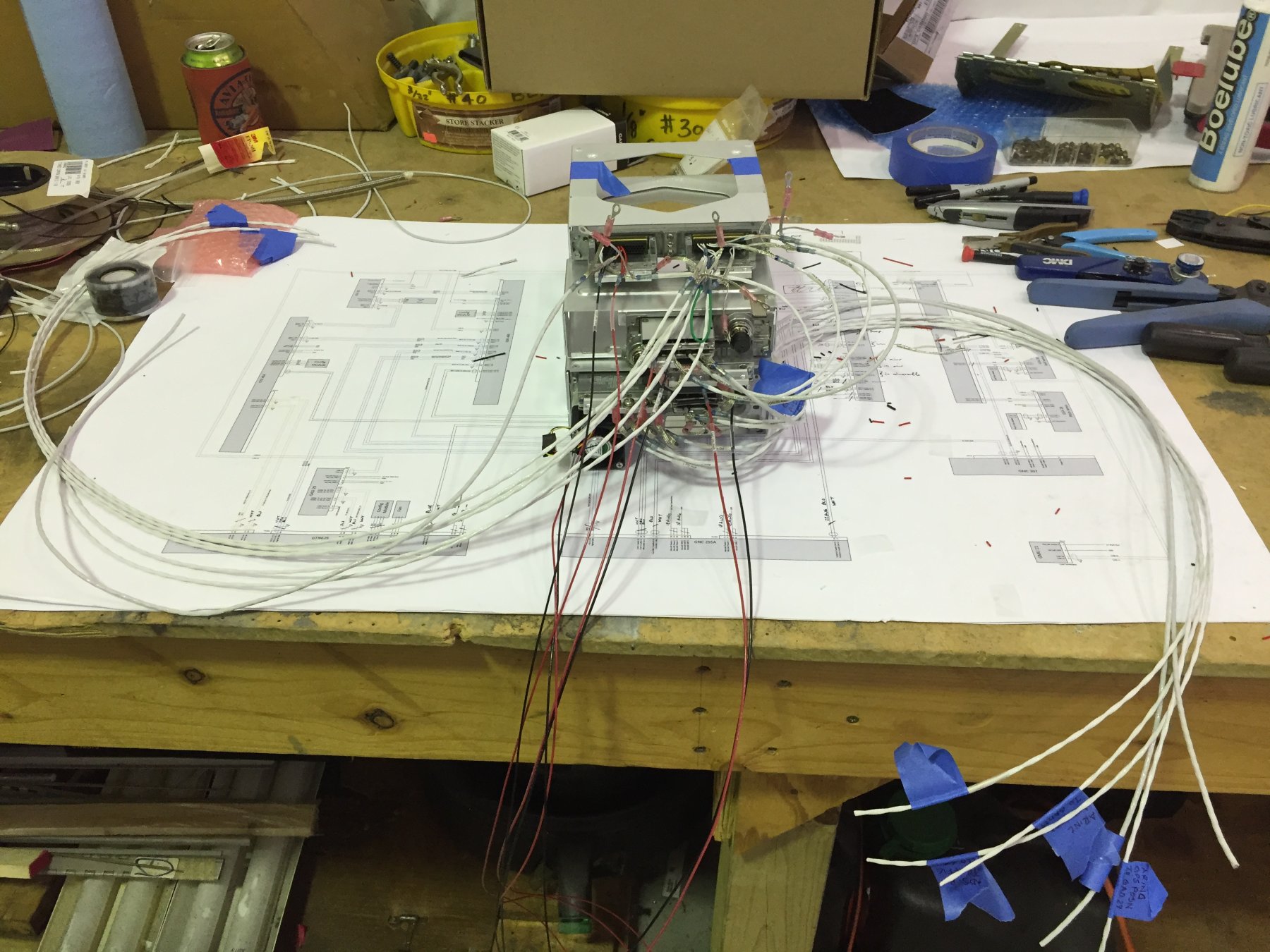

More avionics wiring on the bench. This is quite complex, so I’ve got the wiring diagram laid out on the bench as a pretty large-scale print, so it’s easy to read. Then it’s just a matter of doing one wire at a time and double checking every pin connection is correct. Eventually you work your way through to a completed harness.

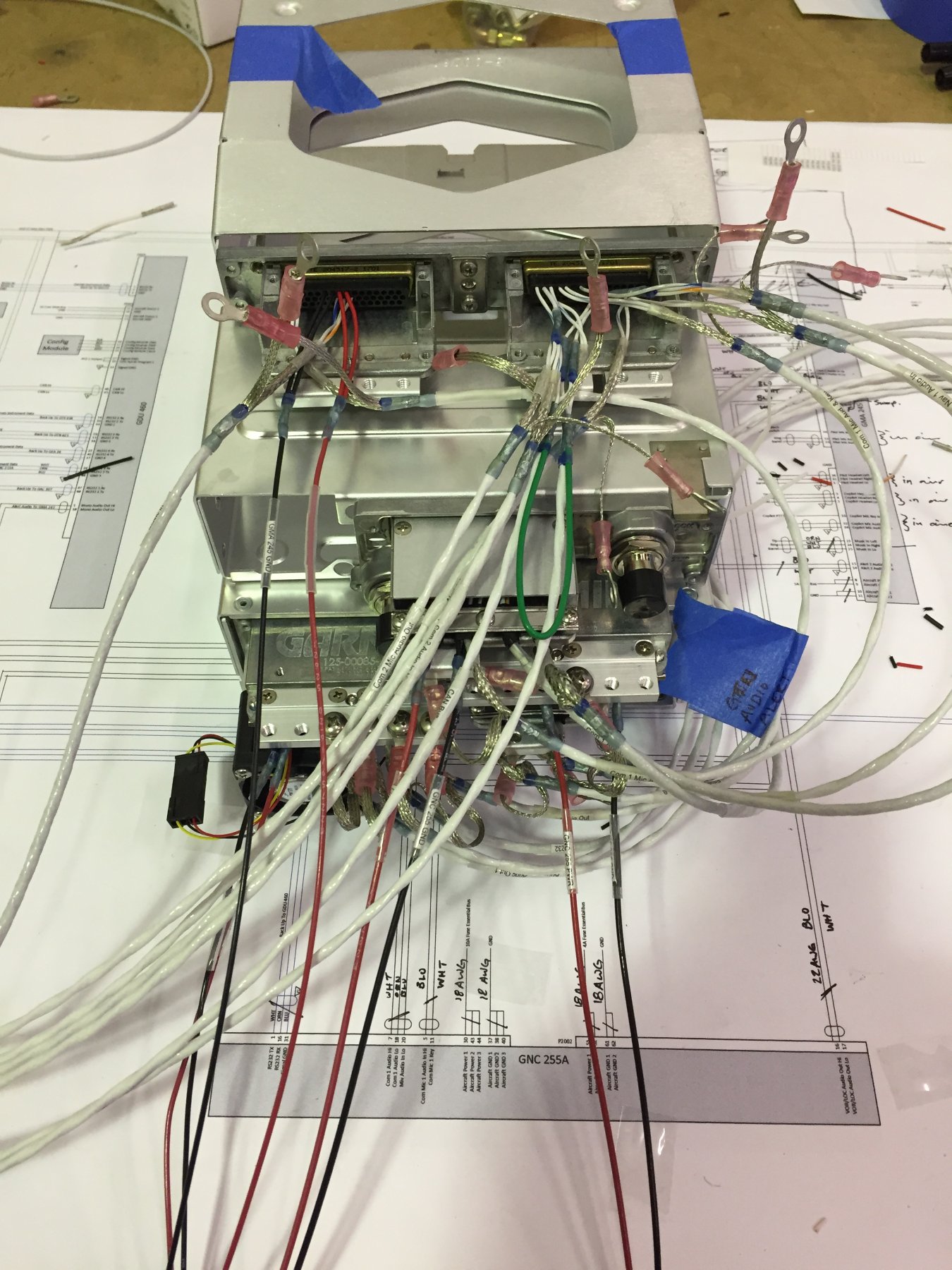

It looks a bit of a shambles right now, but ultimately it tidied up nicely, and I didn’t let the smoke out!
